Description

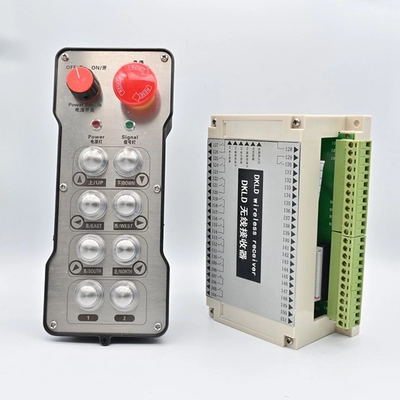

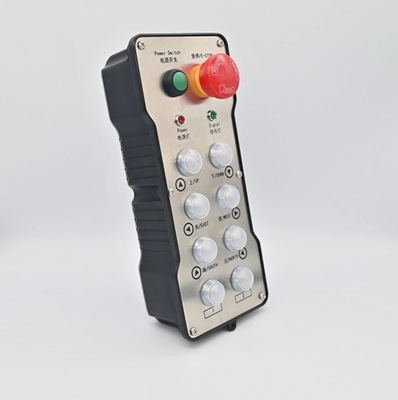

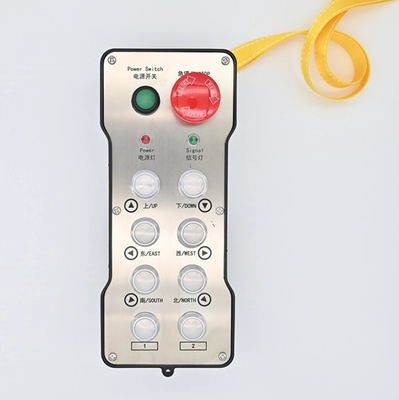

Strong long-distance signal 8 double-speed buttons industrial wireless remote control 433mhz
One “lock/unlock” button, start+emergency stop knob, emergency start is to start the power switch of the transmitter itself, and at the same time, the output control loop of the receiver is connected.
At this time, the controlled end device is powered on and the emergency stop is photographed , Then all outputs can be cut off instantly.
The start button on the transmitter side is turned off, the transmitter side power is turned off, and after 5 seconds, the receiver side can also emergency stop by itself to ensure safety!
| Transmitter Function | 8 double-speed buttons |
| Size | 21×8.5×5.0cm |
| Transmitter Weight | 380g |
| Transmitting fraquency | 433MHz |
| Frequency channel | 50~256 |
| Controlling distance | ≥100m/can be customized 250m/500m |
| Direction of movement | Up, down, East, South, West, North |
| Transmitter Antenna | inside |

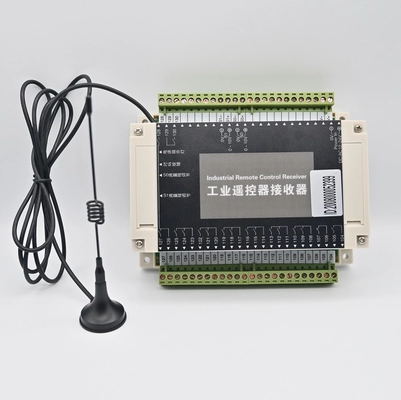

| Receiver Antenna | Inside / optional external antenna |
| Button life | ≥ 1 million times |
| Panel material | stainless steel |
| Button material | stainless steel |
| Shell material | 90% industrial reinforced nylon plastic + 10% industrial chemical fiber |
| Transmitter power supply | DC4.5 (3 pcs alkaline batteries) |
| Receiver power supply | DC12V/24V or AC 36V/220V/380V (AC by external transformer) |
| Temperature range | -25℃~+75℃ |
| Button Text | Arrow / English / Chinese |
| Enclosure protection class | IP65 |
| Application | Gantry crane,JCB,Hoist,Port crane,Cantilever crane,Ship crane,Bridge erecting machine,Beam lifter,Lifting platform,Windlass,Shearing machine,Sand Screening Machine,Industrial furnace door,Winch etc. |
