Description

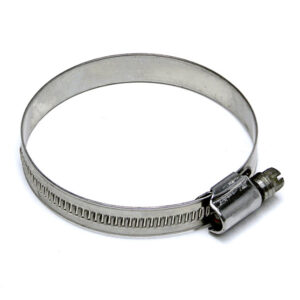

100% Stainless Steel Embossed Hose Clamps are ideal for aircraft, heavy-duty industrial applications as well as outdoor, fresh water and mildly corrosive applications.
The one piece housing design helps maintaining the integrity of the connection and provides a strong seal.
Technical Specification:
– 100% 304 Stainless Steel
– 9mm (3/8″) or 12mm (1/2″) band , 7mm slotted hex head.
– Heavy duty industrial grade one-piece housing design.
– Rolled edges prevent hose damage during installation.
– Maximum Torque Spec: 35 in lbs.
– Accept OEM/ODM.
| Size # | Effective Size Range | Band Width | Part Number |
|---|---|---|---|
| 3 | 5/16″ – 9/16″ (8mm-14mm) | 9mm (3/8″) | EMSC-8-12 |
| 4 | 7/16″ – 11/16″ (11mm-17mm) | 9mm (3/8″) | EMSC-10-16 |
| 6 | 1/2″ – 13/16″ (13mm-20mm) | 9mm (3/8″) | EMSC-12-22 |
| 10 | 3/4″ – 1-1/8″ (19mm-28mm) | 9mm (3/8″) | EMSC-16-27 |
| 12 | 7/8″ – 1-1/4″ (22mm-32mm) | 9mm (3/8″) | EMSC-20-32 |
| 16 | 1-1/16″ – 1-1/2″ (26mm-38mm) | 9mm (3/8″) | EMSC-25-40 |
| 20 | 1-1/4″ – 1-3/4″ (32mm-45mm) | 9mm (3/8″) | EMSC-30-45 |
| 24 | 1-1/2″ – 2″ (38mm-51mm) | 9mm (3/8″) | EMSC-35-50 |
| 28 | 1-1/4″ – 2-1/4″ (32mm-57mm) | 12mm (1/2″) | EMSC-40-60 |
| 40 | 2″ – 3″ (51mm-76mm) | 12mm (1/2″) | EMSC-50-70 |
| 44 | 2-3/8″ – 3-1/8″ (60mm-80mm) | 12mm (1/2″) | EMSC-60-80 |
| 48 | 2-3/4″ – 3-1/2″ (70mm-90mm) | 12mm (1/2″) | EMSC-70-90 |
| 56 | 3-1/8″ – 4″ (80mm-100mm) | 12mm (1/2″) | EMSC-80-100 |
| 60 | 3-1/2″ – 4-5/16″ (90mm-110mm) | 12mm (1/2″) | EMSC-90-110 |
| 64 | 4″ – 4-1/2″ (100mm-114mm) | 12mm (1/2″) | EMSC-100-120 |
| 72 | 4-5/16″ – 5″ (110mm-127mm) | 12mm (1/2″) | EMSC-110-130 |
| 80 | 4-5/8″ – 5-1/2″ (117mm-140mm) | 12mm (1/2″) | EMSC-120-140 |
| 88 | 5-1/8″ – 6″ (130mm-152mm) | 12mm (1/2″) | EMSC-130-150 |
| 96 | 5-5/8″ – 6-1/2″ (143mm-165mm) | 12mm (1/2″) | EMSC-140-160 |
